Air Cooled Chillers
Industrial Air Cooled Chillers
Air cooled chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit. This type of chiller system is generally used in applications where the additional heat it discharges is not a factor. In fact, it’s often practical to use the excess heat to warm a plant during the winter, thus providing additional cost savings. Overall, air cooled industrial chillers are known for their high cooling capacity and adaptability in various industries, providing a reliable cooling process for demanding applications.
Maximize Chiller Efficiency Using the Guardianâ„¢ App
Cold Shot Chillers® predictive maintenance Guardian™ app offers email and text notifications for predictive maintenance milestones, technical alarms, fault codes, and alerts. This advanced feature helps maintain high efficiency and nearly eliminates downtime for all our air-cooled and water-cooled chiller systems.
Request A Quote
Our Technical Specialist will assist you with choosing the right chiller for your needs.

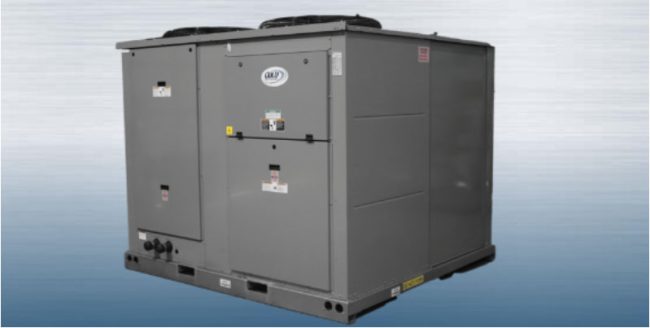

Industrial Stationary Air-Cooled Water Chillers
Stationary industrial air chillers refer to any chiller system that does not include a pump or a tank. The main component is a stand-alone chiller unit that must be connected by piping to a pump and a separate reservoir to function.
This system will typically have separate controls for the chiller and the pump or pumps, with an electrical connection for each component. The controls should Ideally be wired together, to prevent the chiller from cooling until the circulating pump is operating. The standard Cold Shot Chillers® product offering for stationary chillers included sizes ranging from 2 tons to 200 tons.
Ask about our Cold Shot Chillers® predictive maintenance Guardian™ app. This tool provides email/text notifications for predictive maintenance milestones, technical alarms, fault codes and alerts to nearly eliminate downtime for all our stationary air-cooled chilling systems.
With decades of experience, we provide reliable and efficient cooling solutions tailored to meet the needs of industries such as medical, food processing, plastics, and more.
Air Cooled Chillers vs. Water Cooled Chillers
- Air cooled industrial chillers require less maintenance than water-cooled units.
- Air cooled chiller systems do not require a cooling tower or a condenser water pump.
- Consume approximately 10% more power than a water-cooled unit due to wet surfaces transferring heat better than dry surfaces.
- Better suited for smaller or less demanding applications
Explore our Water Cooled Chiller Systems >
Our Range of Industrial Air Chillers

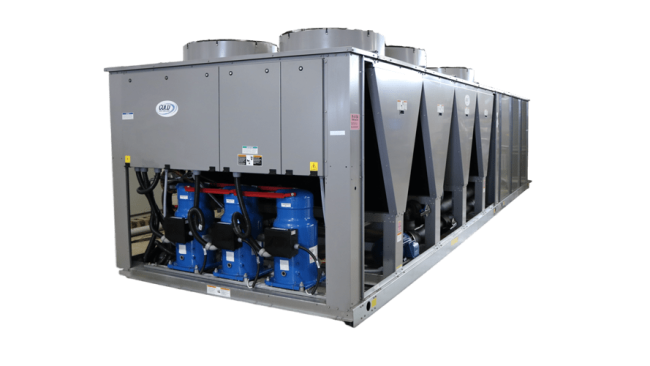

Cold Shot Chillers® has a variety of configurations to best fit your application. Whether you need a stationary air cooled chiller, portable air cooled chiller or central air cooled chiller, Cold Shot Chillers® has the solution to all your air cooled industrial chiller needs. We also offer used chillers to suit your needs.
Contact us today to discuss your requirements and find the perfect chiller for your operation.
Frequently Asked Questions
With proper maintenance, our high efficiency industrial chillers often operate 15-20 years or longer.
Yes. Chillers can be integrated with PLC, BMS, and SCADA systems using hardwired I/O or communication protocols. Integration allows centralized monitoring, alarm reporting, remote start/stop, and coordination with other process equipment.
After final assembly, panels are installed and secured. The unit is cleaned, inspected, and packaged to protect components during transport. Each chiller is clearly labeled to ensure proper handling and safe delivery.
Each industrial chiller is factory tested under full load conditions. All operating modes, controls, and safety devices are verified. Systems are checked for refrigerant leaks, mechanical issues, and proper performance before being approved for shipment.
Air cooled chillers are available in sizes ranging from 1/4 ton up to 100 tons, covering small process loads through large industrial applications.
Standard warranty coverage includes one year on parts and five years on the compressor. (for both air cooled and water cooled chiller models)
Safeties monitor refrigerant pressure, fluid temperature, flow rate, and motor overloads to protect the system.
Real time operating data is available through network connectivity using WiFi, LAN, or LTE. Monitoring includes temperatures, pressures, pump and compressor status, motor run time, cycling history, and system fault codes. Email and text alerts notify operators of maintenance milestones, alarms, and abnormal conditions, while all data is stored for long term history and troubleshooting.
